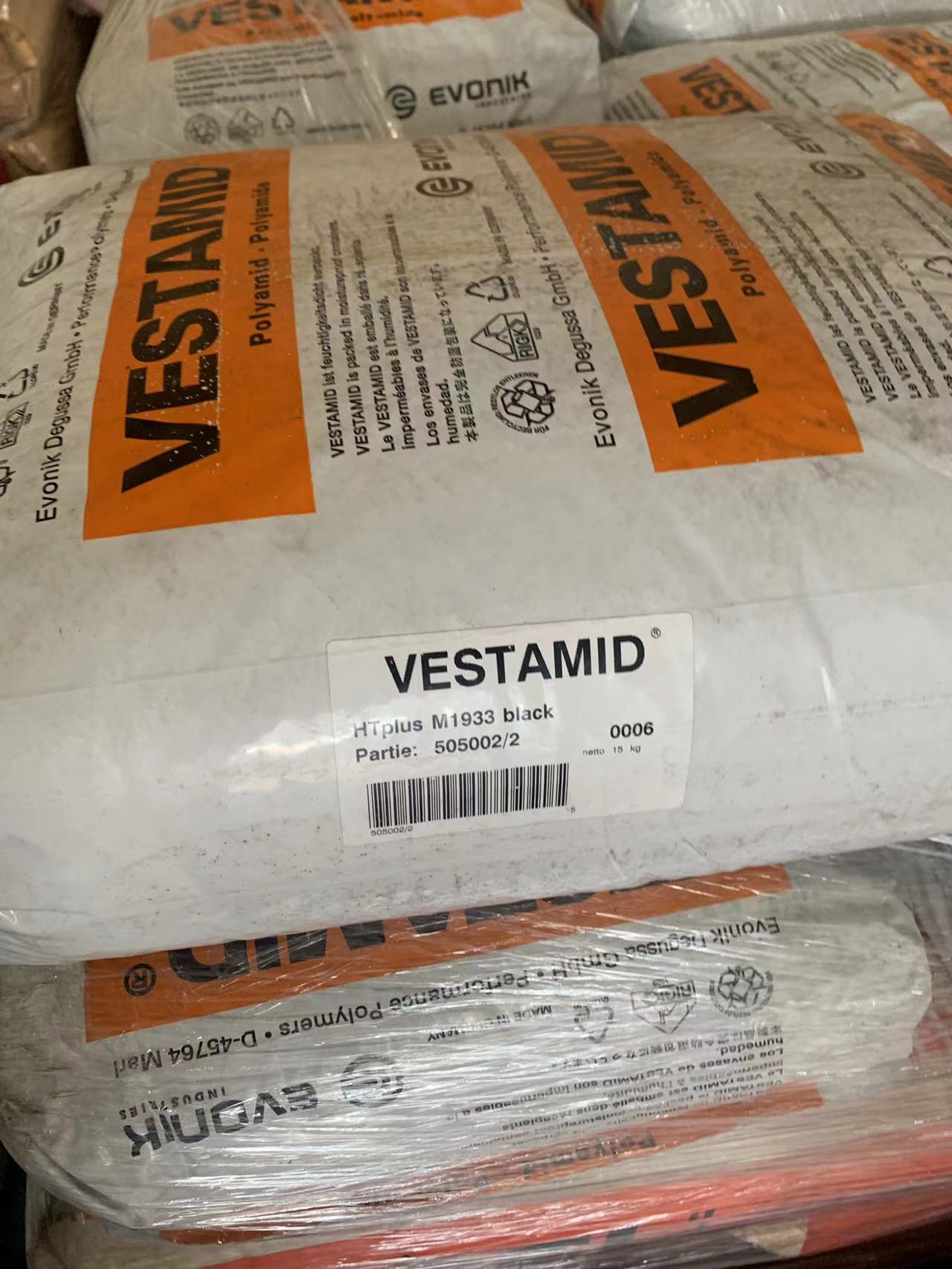

PPA M1933 BK EVONIK GERMANY
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Plastic Datasheets
| Impact resistance | Test Condition | Test Method | EVONIK GERMANY/M1933 BK |
|---|---|---|---|
| Impact strength of simply supported beam without notch | -40°C,完全断裂 | ISO 179/1eU | 26 kJ/m² |
| 23°C,完全断裂 | ISO 179/1eU | 28 kJ/m² |
| Mechanical properties | Test Condition | Test Method | EVONIK GERMANY/M1933 BK |
|---|---|---|---|
| Tensile modulus | ISO 527-2 | 11300 Mpa | |
| Tensile strain | 断裂 | ISO 527-2 | 1.7 % |
| tensile strength | 断裂 | ISO 527-2 | 105 Mpa |
| Electrical performance | Test Condition | Test Method | EVONIK GERMANY/M1933 BK |
|---|---|---|---|
| Compared to the Leakage Tracking Index (CTI) | --3 | IEC 60112 | V |
| 解决方案A | IEC 60112 | V |
| flammability | Test Condition | Test Method | EVONIK GERMANY/M1933 BK |
|---|---|---|---|
| GWIT | 2.0mm,Passes | IEC 60695-2-13 | 800 °C |
| UL flame retardant rating | 0.8mm | UL 94 | V-0 |
| Burning wire flammability index | 2.0mm | IEC 60695-2-12 | 960 °C |
| UL flame retardant rating | 0.40mm | UL 94 | V-0 |
| physical property | Test Condition | Test Method | EVONIK GERMANY/M1933 BK |
|---|---|---|---|
| Shrinkage rate | TD:80°C,2.00mm | ISO 294-4 | 0.90 % |
| MD:80°C,2.00mm | ISO 294-4 | 0.20 % |
| Thermal performance | Test Condition | Test Method | EVONIK GERMANY/M1933 BK |
|---|---|---|---|
| melting temperature | ISO 11357-3 | 300to315 °C | |
| Heat distortion temperature | 0.45MPa,未退火，HDT | ISO 75-2/B | 301 °C |
| 1.8MPa,未退火，HDT | ISO 75-2/A | 267 °C |
