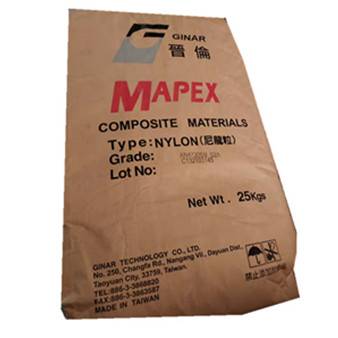

PA66 GP2300AW K1480 TAIWAN GINAR
MAPEX®
Application in the automotive field
Glass fiber reinforced
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Plastic Datasheets
| hardness | Test Condition | Test Method | TAIWAN GINAR/GP2300AW K1480 |
|---|---|---|---|
| Rockwell hardness | R-Scale | ASTM D785 | 121 |
| thermal performance | Test Condition | Test Method | TAIWAN GINAR/GP2300AW K1480 |
|---|---|---|---|
| Hot deformation temperature | 1.8MPa,Unannealed,6.40mm | ASTM D648 | 210 °C |
| Linear coefficient of thermal expansion | MD | ASTM D696 | 3.5E-05 cm/cm/°C |
| Melting temperature | ASTM D3418 | 220 °C |
| mechanical properties | Test Condition | Test Method | TAIWAN GINAR/GP2300AW K1480 |
|---|---|---|---|
| Bending modulus | 3.20mm | ASTM D790 | 8340 Mpa |
| bending strength | Yield,3.20mm | ASTM D790 | 255 Mpa |
| elongation | Break,3.20mm | ASTM D638 | 3.0 % |
| tensile strength | Yield,3.20mm | ASTM D638 | 177 Mpa |
| Electrical performance | Test Condition | Test Method | TAIWAN GINAR/GP2300AW K1480 |
|---|---|---|---|
| Arc resistance | ASTM D495 | 130 sec | |
| Dielectric constant | 1MHz | ASTM D150 | 3.80 |
| Dielectric strength | 1.00mm | ASTM D149 | 20 KV/mm |
| Volume resistivity | ASTM D257 | 1E+14 ohms·cm |
| Physical properties | Test Condition | Test Method | TAIWAN GINAR/GP2300AW K1480 |
|---|---|---|---|
| Shrinkage rate | MD：3.20mm | ASTM D955 | 0.40-0.90 % |
| Water absorption rate | 23°C,24hr | ASTM D570 | 1.1 % |
| flammability | Test Condition | Test Method | TAIWAN GINAR/GP2300AW K1480 |
|---|---|---|---|
| UL flame retardant rating | 0.75mm | UL 94 | HB |
