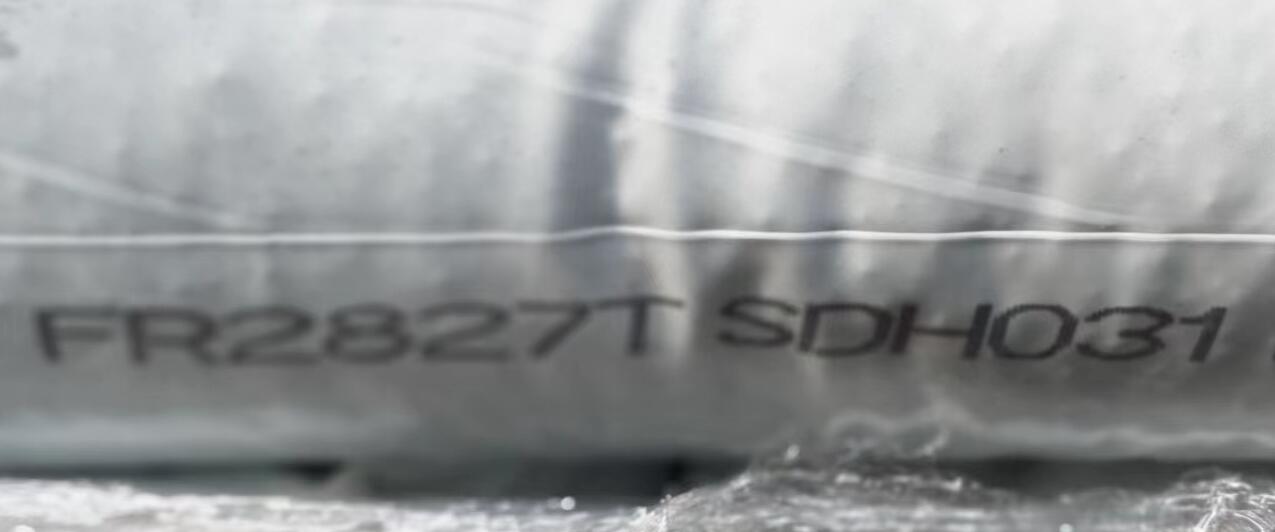

PC FR2827T SDH031 YANTAI WANHUA
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Plastic Datasheets
| Mechanical properties | Test Condition | Test Method | YANTAI WANHUA/FR2827T SDH031 |
|---|---|---|---|
| Tensile modulus | ASTM D638 | 2250 Mpa | |
| Impact strength of cantilever beam gap | 23℃ | ASTM D256 | 800 J/m |
| tensile strength | 50mnVmin，屈服 | ASTM D638 | 65 Mpa |
| bending strength | 2.0mm/min | ASTM D790 | 95 Mpa |
| elongation at break | 50mm/min | ASTM D638 | 100 % |
| Flexural modulus | 2.0mm/min | ASTM D790 | 2300 Mpa |
| tensile strength | 50mm/min | ASTM D638 | 70 Mpa |
| Electrical performance | Test Condition | Test Method | YANTAI WANHUA/FR2827T SDH031 |
|---|---|---|---|
| dielectric constant | 100Hz | IEC 60250 | 3.1 |
| proof tracking index | IEC 60112 | 225 V | |
| Dissipation Factor | 100Hz | IEC 60250 | 0.00050 |
| Surface Resistivity | IEC 60093 | 10000000000000000 Ω | |
| Accumulation resistor | IEC 60093 | 100000000000000 Ω.m | |
| dielectric constant | 1MHz | IEC 60250 | 3 |
| 1.0mm | IEC 60243 | 34 KV/mm | |
| Dissipation Factor | 1MHz | IEC 60250 | 0.009 |
| optical performance | Test Condition | Test Method | YANTAI WANHUA/FR2827T SDH031 |
|---|---|---|---|
| Jiadu | 3000pm | ASTM DI 003 | 0.8 % |
| transmissivity | 3000pm | ASTM D1003 | 89 % |
| physical property | Test Condition | Test Method | YANTAI WANHUA/FR2827T SDH031 |
|---|---|---|---|
| Shrinkage rate | ASTM D955 | 0.5-0.7 % | |
| Water absorption rate | 23°C24h | ASTM D570 | 0.2 % |
| Network Finance Index | 300℃ 1.2kg | ASTM D1238 | 10 g/10min |
| Thermal performance | Test Condition | Test Method | YANTAI WANHUA/FR2827T SDH031 |
|---|---|---|---|
| Heat distortion temperature | 1.8MPa 3.2mm，HDT | ASTM D648 | 126 °C |
| vicat | 120℃/hr 50N | ASTM D1525 | 146 °C |
