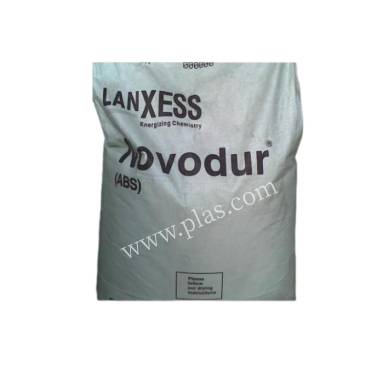

ABS LNH801 LANXESS GERMANY
--
Casters、Automotive components
enhance、Thermal stability、Good flow、High heat resistance
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Plastic Datasheets
Basic performance | Test Condition | Test Method | LANXESS GERMANY/LNH801 |
---|---|---|---|
Melt volume flow rate | 220℃,10kg | ISO 1133 | 9.00 CM |
density | ISO 1183 | 1.07 g/cm |
Mechanical properties | Test Condition | Test Method | LANXESS GERMANY/LNH801 |
---|---|---|---|
Tensile strain | 屈服 | ISO 527-1 | 3.0 % |
Impact strength of cantilever beam gap | 23℃ | ISO 180/1A | 30.0 KJ/m |
Flexural modulus | 23℃ | ISO 178 | 2300 Mpa |
Charpy Notched Impact Strength | -30℃ | ISO 179/1eU | 160 KJ/m |
Shore hardness | ISO 2039-1 | 105 Mpa | |
Impact strength of cantilever beam gap | -30℃ | ISO 180/1A | 12.0 KJ/m |
Tensile stress | 屈服 | ISO 527-1 | 49.0 Mpa |
fracture strain | 23℃ | ISO 527-1 | >15 % |
Charpy Notched Impact Strength | 23℃ | ISO 179/1eA | 30.0 KJ/m |
-30℃ | ISO 179/1eA | 12.0 KJ/m | |
23℃ | ISO 179/1eU | 220 KJ/m | |
Tensile modulus | ISO 527-1 | 2400 Mpa | |
bending strength | 23℃ | ISO 178 | 77.0 Mpa |
Electrical performance | Test Condition | Test Method | LANXESS GERMANY/LNH801 |
---|---|---|---|
relative permittivity | 1000Hz | IEC 60250 | 3.00 |
dielectric strength | IEC 60243-1 | 38 KV/mm | |
relative permittivity | 100Hz | IEC 60250 | 3.10 |
Dielectric loss | 100Hz | IEC 60250 | 0.0050 |
Volume resistivity | IEC 60093 | 1E+14 ohm.m | |
Surface Resistivity | IEC 60093 | 1E+16 ohms | |
Dielectric loss | 1000Hz | IEC 60250 | 0.0090 |
physical property | Test Condition | Test Method | LANXESS GERMANY/LNH801 |
---|---|---|---|
Shrinkage rate | ISO 294-4 | 0.50-0.70 % |
Thermal performance | Test Condition | Test Method | LANXESS GERMANY/LNH801 |
---|---|---|---|
Heat distortion temperature | 0.45MPa,HDT | ISO 75-1 | 106 °C |
Linear coefficient of thermal expansion | parallel | ISO 11359-1 | 0.000080 cm/cm℃ |
Heat distortion temperature | 1.80MPa,HDT | ISO 75-1 | 99.0 °C |
vicat | 50℃/h 50N | ISO 306 | 105 °C |
