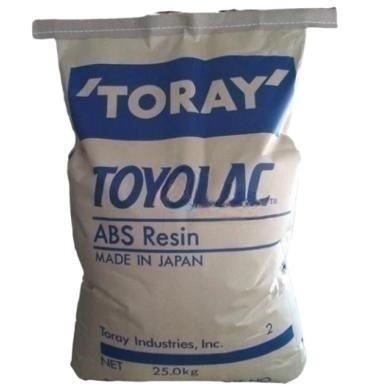

ABS Toyolac® 100-322 TORAY JAPAN

Unit Price:US$ 1,984 /MT
Packaging Specification:
25 KG/PKG
Packaging Material:
Paper bag
Supply Quantity:
10MT
Delivery Terms:
FOB
Port of Loading :
China Main Port
Accepted Payment Methods:
T/T
Shipping:
Negotiate supplier for shipping details

Supplier Information

ASIA PLASTIC EXCHANGE LIMITED

+86 755 ********View

serv********View

+86 ********View

For more details, please contact the supplier!

Material Description

Material Properties:High impact
Application Areas:Automotive sector｜Electronic and electrical field｜Electrical appliances
Color:--
Grade:Injection grade

Technical Data Sheet

impact performance	Test Condition	Test Method	Test Result	Test Unit
Impact strength of cantilever beam gap	23°C,12.7mm	ASTM D256	230	J/m
	Impact strength of cantilever beam gap	23°C,3.20mm	ASTM D256	270	J/m
		Impact strength of cantilever beam gap	0°C,12.7mm	ASTM D256	180	J/m
			Impact strength of cantilever beam gap	0°C,3.20mm	ASTM D256	200	J/m
				Impact strength of cantilever beam gap	-30°C,12.7mm	ASTM D256	120	J/m
				Impact strength of cantilever beam gap	Impact strength of cantilever beam gap	-30°C,3.20mm	ASTM D256	140	J/m
Charpy Notched Impact Strength	23°C	ISO 179/1eA	20	kJ/m²
flammability	Test Condition	Test Method	Test Result	Test Unit
UL flame retardant rating		UL 94	HB
mechanical properties	Test Condition	Test Method	Test Result	Test Unit
crack		ISO 527-2/50	>10	%
crack	crack		ASTM D638	48	%
yield		ISO 527-2/50	51.0	Mpa
yield	yield		ASTM D638	48.0	Mpa
Tensile modulus		ISO 527-2/1	2600	Mpa
--5		ISO 178	78.0	Mpa
--4		ASTM D790	74.0	Mpa
Bending modulus		ASTM D790	2280	Mpa
thermal performance	Test Condition	Test Method	Test Result	Test Unit
Linear coefficient of thermal expansion	MD	ASTM D696	7.4E-05	cm/cm/°C
thermal conductivity		ASTMC177	0.15	W/m/K
1.8MPa, unannealed		ISO 75-2/A	83.0	°C
1.8MPa, unannealed, 12.7mm		ASTM D648	93.0	°C
1.8MPa, unannealed, 6.40mm		ASTM D648	88.0	°C
Physical properties	Test Condition	Test Method	Test Result	Test Unit
Water absorption rate	23°C,24hr	ASTM D570	0.30	%
Shrinkage rate	MD	ASTM D955	0.40-0.60	%
melt mass-flow rate	220°C/10.0kg	ISO 1133	15	g/10min
density		ASTMD792	1.04	g/cm³
Electrical performance	Test Condition	Test Method	Test Result	Test Unit
Surface resistivity		ASTM D257	>1.0E+16	ohms
Volume resistivity	23°C	ASTM D257	>1.0E+16	ohms·cm
Dielectric strength		ASTM D149	23	KV/mm
Dielectric constant	1kHz	ASTM D150	3.10
Dissipation factor	1kHz	ASTM D150	6.6E-03
hardness	Test Condition	Test Method	Test Result	Test Unit
Rockwell hardness	R-Scale	ASTM D785	112

IMPORTANT NOTES: Plas.com collected the data in the data sheet from the material manufacturers. Plas.com makes the best effort to improve the accuracy of the data, but has no responsibility for the data. We strongly recommend verifying the validity of the data with the material manufacturers before making a final decision.
