ABS

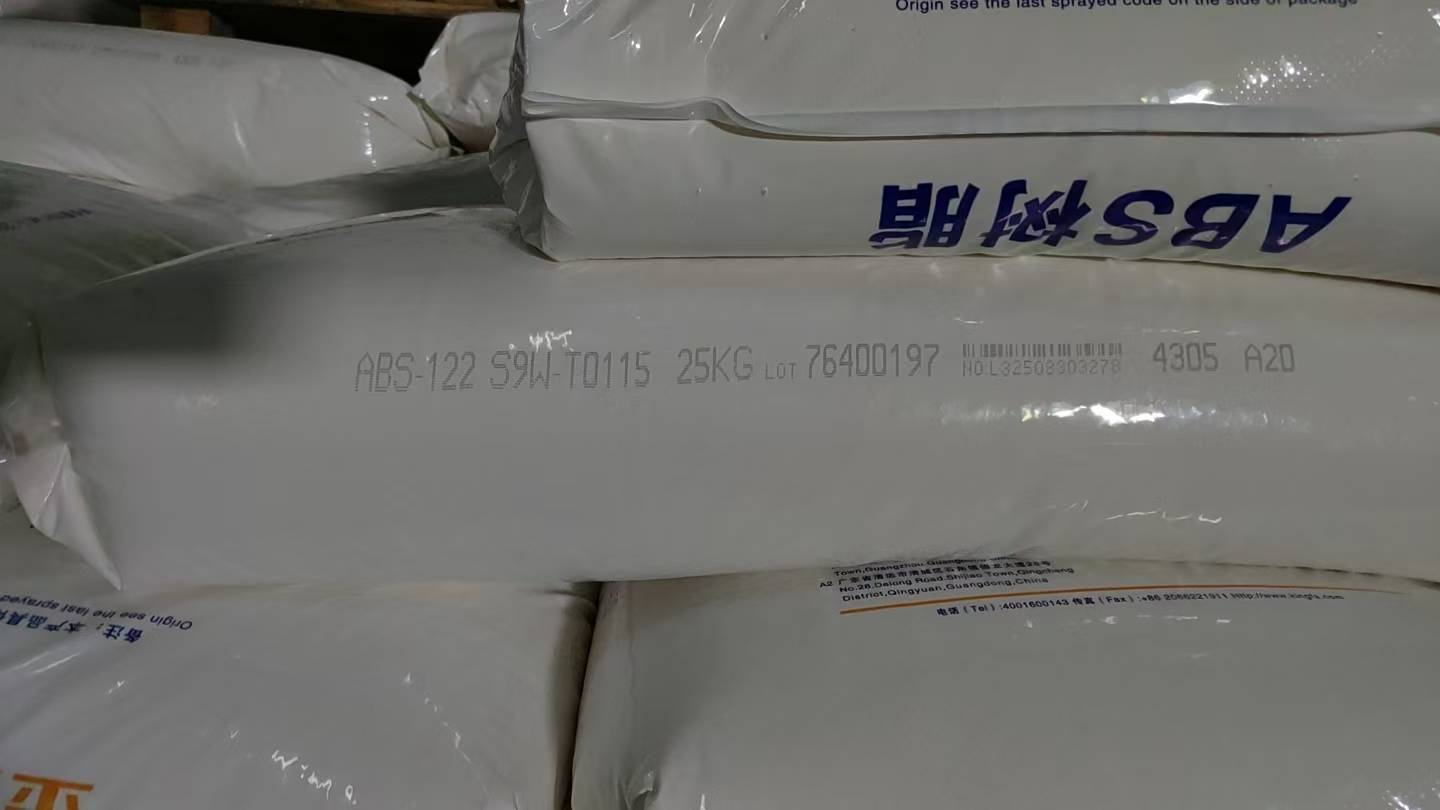

ABS KINGFA® 122 S9W-T0115 KINGFA LIAONING

Unit Price:US$ 1,173 /MT
Packaging Specification:
Supply Quantity:
50MT
Delivery Terms:
DDP
:
China Main Port
Accepted Payment Methods:
T/T
Shipping:
Negotiate supplier for shipping details

Supplier Information

ASIA PLASTIC EXCHANGE LIMITED

+86 755 ********View

serv********View

+86 ********View

For more details, please contact the supplier!

Material Description

Material Properties:High gloss｜High rigidity｜Excellent comprehensive performance
Application Areas:Household appliances｜Electronic appliances
Color:--
Grade:--

Material Certification

TDS

Technical Data Sheet

Other	Test Condition	Test Method	Test Result
密度	23℃	ISO 1183-1	1.04 g/cm
Melt index	220℃，10Kg	ISO 1133-1	24 g/10min
模塑收缩率	23℃	ISO 2577	0.4-0.7 %
UL flame retardant rating	1.6mm-3.0mm	UL94	HB

力学性能	Test Condition	Test Method	Test Result
拉伸强度	50mm/min	ISO 527-2	47 MPa
断裂拉伸应变	50mm/min	ISO 527-2	20 %
弯曲强度	2mm/min	ISO 178	75 MPa
弯曲模量	2mm/min	ISO 178	2450 MPa
悬臂梁缺口冲击强度	23℃	ISO 180	20 kJ/m
洛氏硬度	R-Scale	ISO 2039/2	110

Thermal Properties	Test Condition	Test Method	Test Result
负荷变形温度	0.45MPa	ISO 75	91 ℃
Vicat Softening Point	50N，120℃/h	ISO 306	96 ℃

电性能	Test Condition	Test Method	Test Result
体积电阻率		IEC60093	10^16 Ω·cm
介电强度	2mm， in oil	IEC 60243-1	23 kV/mm

IMPORTANT NOTES: Plas.com collected the data in the data sheet from the material manufacturers. Plas.com makes the best effort to improve the accuracy of the data, but has no responsibility for the data. We strongly recommend verifying the validity of the data with the material manufacturers before making a final decision.
